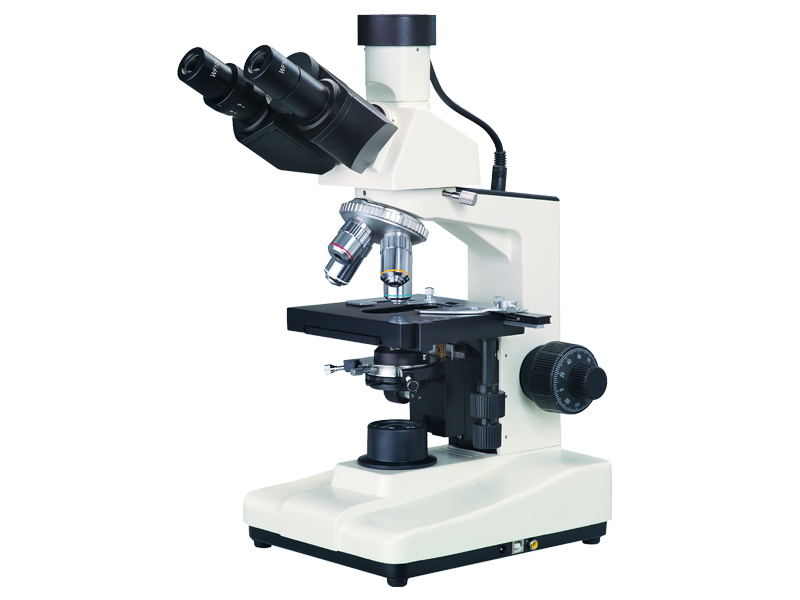

HINOTEK MC-1580 数字显微镜

Eyepiece: WF10X(Φ18mm)

Objective: Achromatic 4X/0.10; Achromatic 10X/0.25; Achromatic 40X/0.65(Spring); Achromatic 100X/1.25(Spring, oil)

Video trinocular

- inside clear color 1/3”CCD sensor

- USB2.0 Output, Max resolution: 720X576(PAL) 720X480(NTSC). White balance: Automatic

- System requirement: Windows 2000/ Windows XP/Windows Vista.

- VIDEO Output, Horizontal resolution: 520 TV lines, 1Vp-p/75Ω NTSC/PAL (optional).White balance: Automatic.

- Accessories: Video cable, USB cable, Driver CD, User guide. Power supply adapter:12V DC

Focus system: Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm

Nosepiece: Quadruple(Frontward ball bearing inner locating)

Stage: Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)

Abbe condenser: N.A.1.25 Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Collector: For halogen lamp

Light source: 6V 20W Halogen lamp with brightness control
