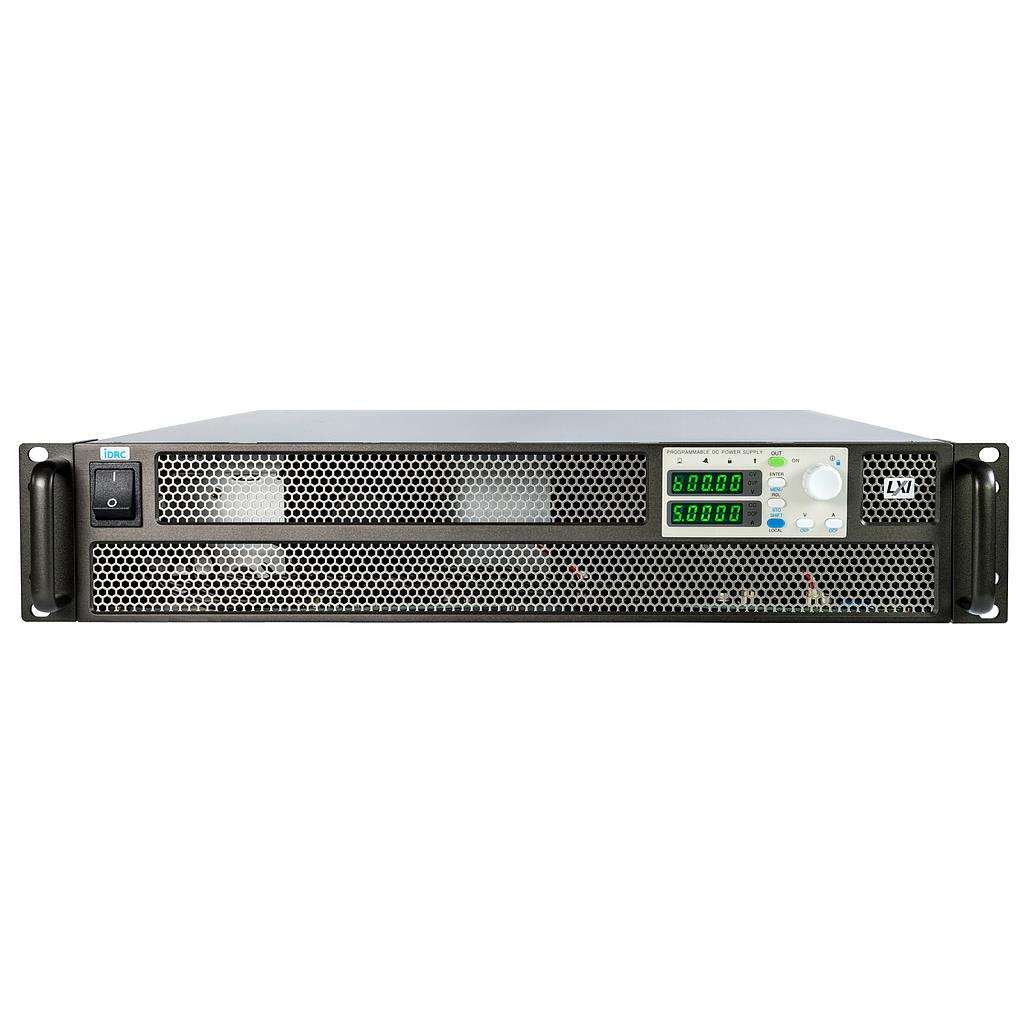

iDRC DSP-600-005HR 可编程直流电源 (3000W, 600V, 5A)

Output power: 3000W

Output

Voltage: 0 - 600 V

Current: 0 - 5 A

Input

Input voltage: type. 190~240Vac, 50/60Hz

Input current (Full load): 230Vac - 15.6A

Inrush current: 230Vac <65A

Line regulation

0.05%+mV: 62

0.1%+mA: 2.55

 Load regulation

0.05%+mV: 95

0.1%+mA: 6.1

Efficiency: 82% ‒ 88%

Power Factor (PF): 0.99 (at 115Vac, rate output)

Withstand voltage

Input-Output - AC2000V:1 minute

Input-Ground - AC2000V:1 minute

Weight: approx. 15.1 kg

Noise: <70 dB(A)

Operating environment: Temperature : 0~50℃ ; Humidity : 30%~90% RH(no condensation)

Storage environment: Temperature : -20~70℃ ; Humidity : 10%~90% RH (no condensation)
