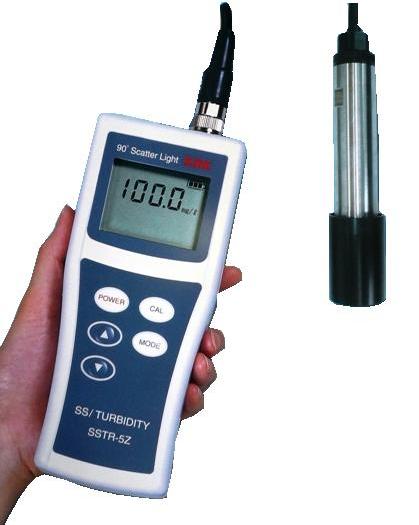

KASAHARA SSTR－5Z SS/Turbidity Sensor (0~500°C, 0~500mg/L)

Measuring principle: Near-infrared 90° scattered light measurement method

Indication: LCD4-digit

Measuring range:

   Turbidity: 0~500°C

   SS:0~500mg/L

   *Specification: 0~1000

Resolution:

   Range of 0.1 /0~199.9

   Range of 1 /200~500

   Full scale For 1000: 1 For

   Full scale 20: 0.01

Reproducibility: ± 2%FS or less (under certain conditions)

SS converter:

   SS conversion factor can be set

   (x = turbidity, y=SS and y=a+bx)

Zero calibration:

   1st standard: pure water

   2nd standard: simple zero calibration plate

Span Calibration:

   1: Set the SS conversion factor after calibration with formazine turbidity standard solution

   2: Direct SS calibration 1 or 2 point calibration of the SS turbidity of the sample water after manual analysis

Self-diagnostic function: Battery voltage, calibration abnormality, detector abnormality

Ambient temperature range: 0～40℃

Power: AAA alkaline batteries (LR03×3 batteries) with auto power-off function
