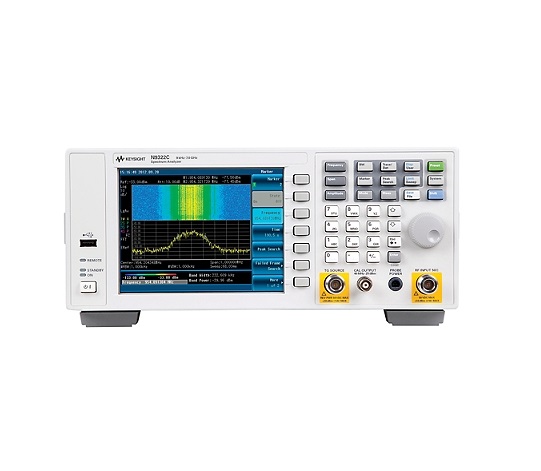

KEYSIGHT N9322C (gồm bộ đầu dò N9311X-100) 基础频谱分析仪(BSA) (9 kHz-7 GHz)

• Key specifications and features:

– 9 kHz to 7 GHz frequency range

– ± 0.3 dB absolute amplitude accuracy

– 10 Hz to 3 MHz resolution bandwidth

– –152 dBm displayed average noise level (Freq at 1 GHz, 10 Hz minimum RBW)

– –90 dBc/Hz phase noise

– 50 dB input attenuator, with 1 dB steps

– +11 dBm TOI

– 2 ms to 1000 s sweep time (span ≥ 100 Hz)

– Optional 7 GHz tracking generator, and reflection measurement

• General specifications:

– 5 to 45 °C operating temperature

– 25 W nominal power consumption

– Dimension (H x W x D): 132.5 x 320 x 400 mm, (5.2 x 12.6 x 15.7 inch)

– Weight: 7.6 kg

– 1 year calibration cycle
