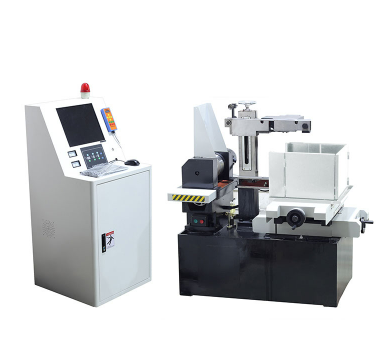

LABTT LC-250L 金相线切割机

Cutting speed reaches mm2/H 9500

Processing precision mm ± 0.01

Cutting surface roughness μ m    Ra≤2.5

Minimum feed increment 0.001 mm

Worktable size mm 300 × four hundred

Worktable stroke (X * Y) mm 200 × two hundred and fifty

Z-axis stroke mm 220

Maximum cutting slope/workpiece thickness mm ± 3 °/80

Normal/maximum cutting current at A 4-6/9

Wire speed m/s 0-12m/s, adjustable by frequency conversion

Diameter of electrode wire mm Φ 0.10-0.22

Molybdenum wire loss 160mm2/min, continuous cutting 150000 mm2, wire loss ≤ 0.01 mm

Water tank volume 50L

Input voltage 220-380V/AC ± 10% 50-60Hz

Power KVA 2

Maximum bearing kg 2520

Main engine weight kg 800

Weight of electrical control cabinet kg 80kg

Boundary dimension of electrical control cabinet mm 600 × seven hundred × one thousand and three hundred

Packing size of main machine mm 1000 × nine hundred × one thousand and three hundred
