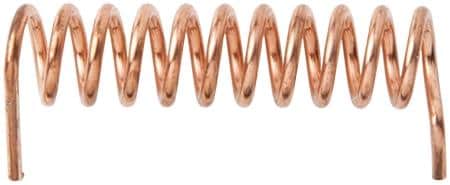

Linx Technologies - TE Connectivity ANT-433-HESM Passive Antenna SMD 1/4 Wave Helical 433MHz

Gain: 1.9 dBi

VSWR: 2

Style: Coil

Length: 38.1 mm

Diameter: 6.35 mm

Bandwidth: 40 MHz

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: ISM, Remote Control, Alarms, Security Systems

Unit Weight: 3.862 g

For Use With: 450 MHz, LTE Band 72, LTE Band 73, Personal Mobile Radio - PMR

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Embedded Monopole

Number of Bands: 1 Band

Center Frequency: 433 MHz

Mechanical Style: Helical

Ground Plane Size: 58 mm x 88 mm

Maximum Frequency: 458 MHz

Minimum Frequency: 418 MHz

Termination Style: Through Hole

Protocol - Sub GHz: ISM

Protocol - WiFi - 802.11: LoRaWAN, WiFi, WLAN

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
