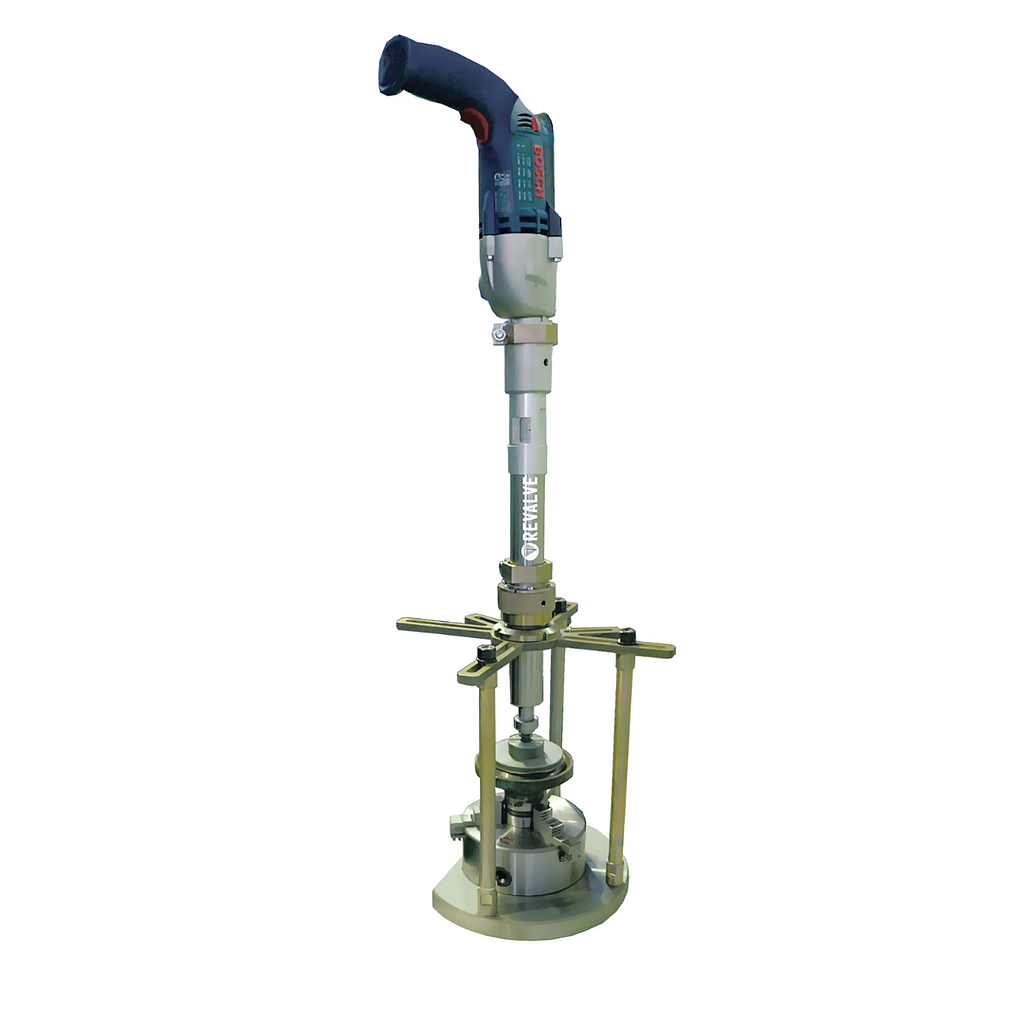

Revalve PUR-5 Portable machine for grinding & lapping of globe & safety valves
制造商: Revalve Model: PUR-5 - 报价要求
- 报价要求
- 联系
Specification:
Valve range, DN, mm (″): 32...200 mm (1¼...8) (25...200 mm (1...8) for safety valve)
Immersion depth - T (″): 1000 (40) mm
Minimum size - А (″): 87 (3)mm
Electric drive:
- Power supply: 230 /50 V/Hz
- Power consumption: 1,3 kW.
Pneumatic drive:
- Power: 0,83 kW
- Air flow rate: 1,6 (423) m³/min (gl/min)
- Compressed-air working pressure, bar (psi): 6,3 (91)
Maximum immersion depth into the valve housing(″): 200 (8)mm
Weight:
- The heaviest mounted assembly: 7kg
- Set (with pneumatic and electric drive): 60kg
