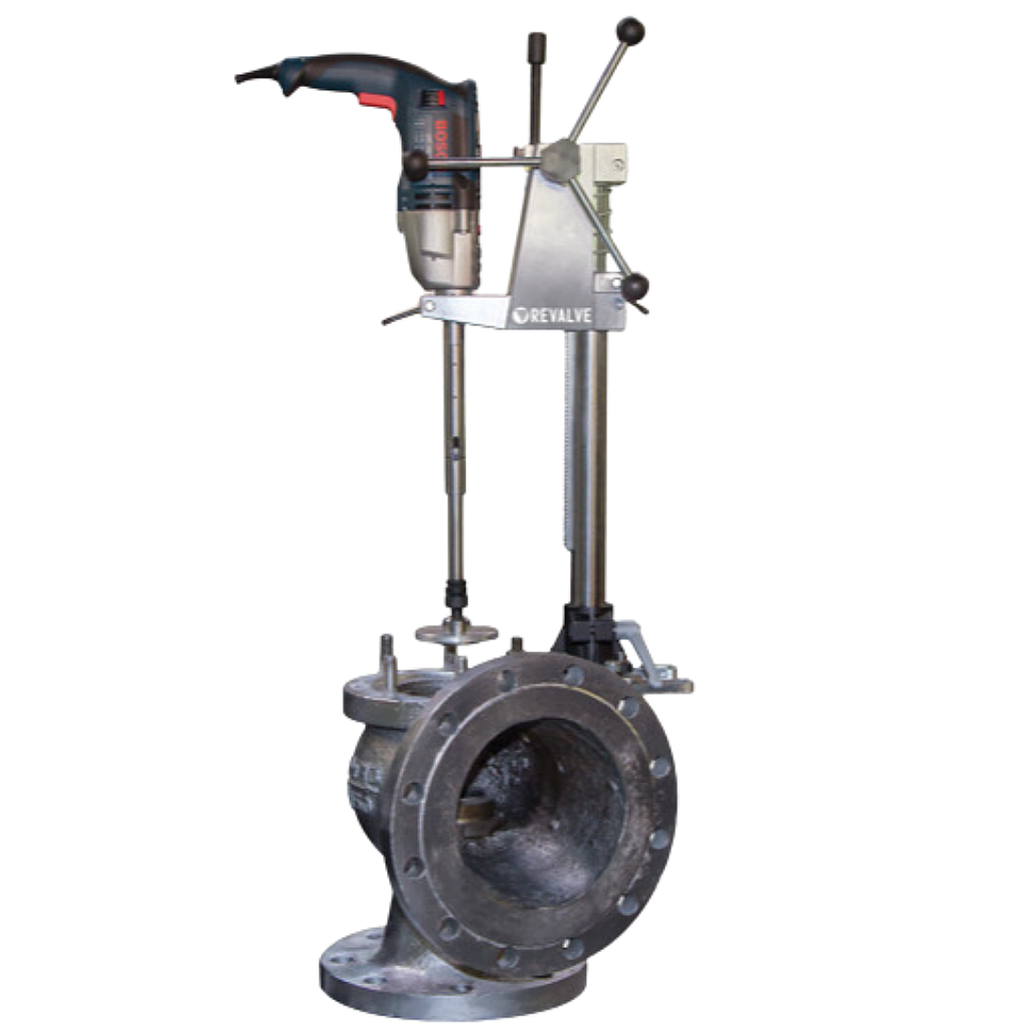

Revalve PUR-KPKZMS-150 Portable machine for grinding and lapping of globe & safety valves

Specifications:

Valve range, DN, mm (″) 8...150 mm (¼...6″)

Maximum depth of the machined surface (distance from valve axis to the valve actuator flange end): 260 (10)

Pneumatic-driven machine

Maximum disc:1300 RPM

Drive power on 6,3 bar pressure,:0,7kW

Air consumption: 1000 l/min

Air drive pressure: 6,3±0,5bar

Machine with non-accumulator electric drive (wired)

Maximum disc RPM (1st gear/ 2nd gear): 1000/2800

Power consumption: 1,2 kW

Drive torque, N m (1st gear/ 2nd gear): 33,0/13,0

Power supply: 230/50 V/Hz

Machine with accumulator electric drive (wireless)

Maximum disc RPM (1st gear/ 2nd gear): 500/1700

Drive torque, N m (1st gear/ 2nd gear) 24,0/11,0

Weight of the machine (w/o packing): 10 kg

Packed weight: 22 kg
