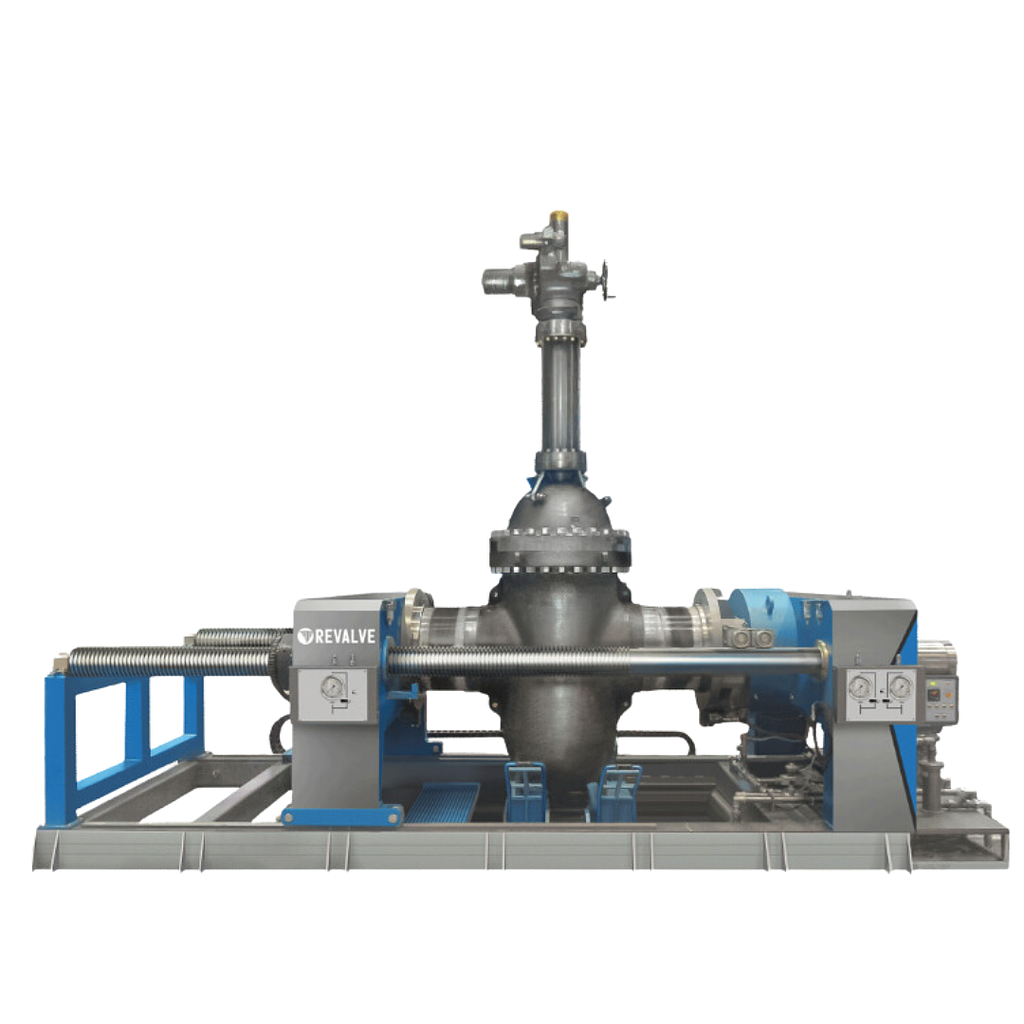

Revalve S-6-1400/3200 Test Benches For Shut Off & Control Valves


Maximum clamping force: 3200 t

Distance between test tables:(″) 800/3400 (32/134) (min/max)mm

Distance between screw rods(″): 2950 (115) mm

Overall dimensions (LхWхH)(″): 8000х4000х2900(315х157х114)mm

Electric power supply: 400/50 V/Hz

Power consumption: 40kW

Weight: 70000kg

* Maximum diameter for wedge gate valves (except ball valves).
