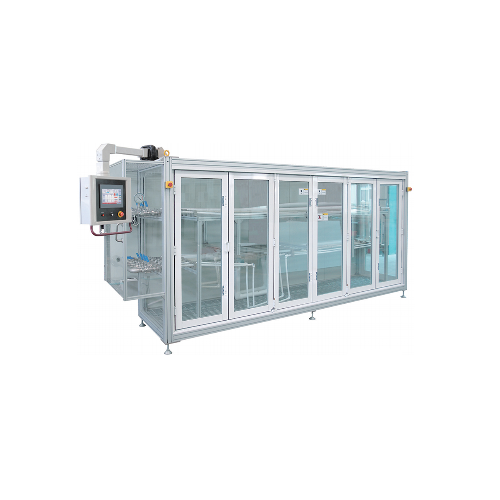

Samyon SYTCT Thermal Cycle Tester for Plastic Pipe (4.00bar-12.00bar)

Application:

The Thermal Cycling Tester is mainly used to determine the leakage status of composite pipes & fittings when subjected to specified cycling times under speciffied internal pressure load.

Standard:

ISO 10508, ASTM F 1335-98 and the equivalent.

Parameter:

Pressure range: 4.00bar-12.00bar(0.400Mpa-1.200Mpa)

Pressure control accuracy: ±0.05Mpa

Number of test stations: 6, can be closed individually

Alternation time between hot and cold water: <60s

Cycle period: 300s-1800s

Number of cycles: selectable 1-100000

Temperature range(cold water): 20ºC to RT(selectable)

Temperature range(hot water): PT to 95ºC(selectable)

Temperature control accuracy(cold water): ±2ºC

Temperature control accuracy(hot water): ±1ºC

Temperature display error: 1ºC

Max. total cross-sectional dim. of all connect test samples: 6200mm2(2*63)/4200mm2(1*63)

Power supply: 380VAC 50Hz 25KW

Overall dimensions(L*W*H): (5200*3200*2100)mm(6stations)

Installation dimension(L*W*H): (6000*4000*3000)mm
