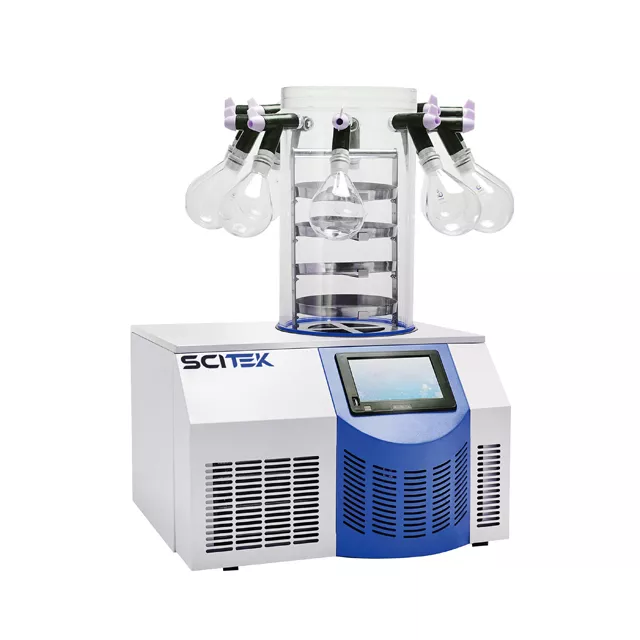

Scitek FD-10P Benchtop Freeze Dryer, -60℃ Condenser Temp

"Type:       Standard chamber with 8 port manifold

Freeze Drying Area (m2) :       0.12

Tray (Qty):        4/6(Optional)pcs

Tray Size (ΦxH)(mm):        Φ200x20

Height Between Trays (mm)  :      76/50

Condenser Temperature (℃) :       -60

Condenser Capacity (L) :       6.5

Condenser Size (DiameterxH)(mm) :       Φ215x190

Vacuum Degree (No-loading) (Pa) :       ≤5

Ice Condensing Capacity (kg/24h) :       3

Loading Capacity/ Shelf (mL)  :      300

Total Loading Capacity (mL):        1200

Drying Chamber Size (Standard):        Lower circle: Φ260mm; Upper circle: Φ240mm; Height: Φ450mm

Total Qty. of Vial Φ22:        260

Total Qty. of Vial Φ16:        480

Total Qty. of Vial Φ12 :       920

Refrigerant Type :       CFC-free

Standard Accessories:

Vacuum pump 2L/s, 8m³/h, material tray, material rack, PC cover (for all modes), Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs

Consumption:        0.85kW

Electricity:        AC220V,50Hz(standard), other electricity type can be customized

External Size (WxDxH)(mm):        600x540x374/820

Shipping Size (WxDxH) :

+Main Body :       670x700x560mm

+Drying Chamber :       410x410x640mm

+Vacuum Pump:        220x580x370mm

Gross Weight:        110kg"
