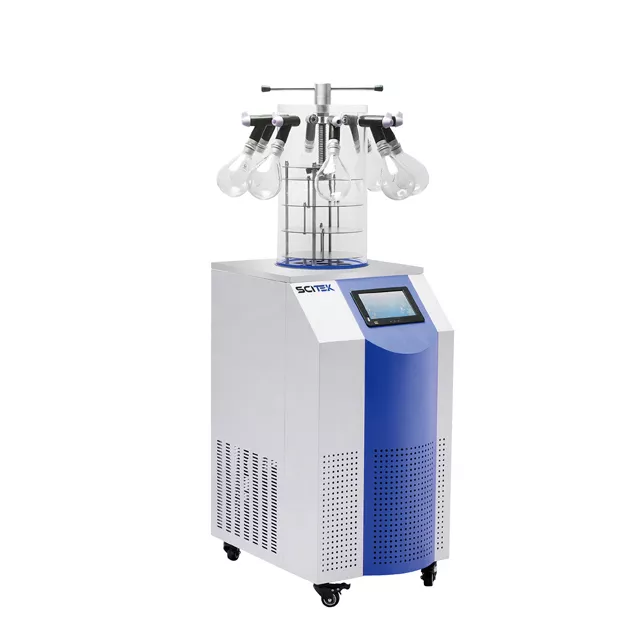

Scitek FD-18BPT Vertical Freeze Dryer (Optional heating, -80 ℃)

"B: Optional heating, cold trap temperature -80 ℃

Type:  Stoppering chamber with 8 port manifold

Freeze Drying Area (m2) :  0.09

Tray (Qty):   3pcs

Tray Size (ΦxH)(mm):        Φ240x20

Height Between Trays (mm)  :71(average)

Condenser Temperature (℃) :       -80

Condenser Capacity (L) :       28

Condenser Size (DiameterxH)(mm) :       Φ300x420

Vacuum Degree (No-loading) (Pa) :       ≤5

Ice Condensing Capacity (kg/24h) :   6

Loading Capacity/ Shelf (mL)  : 300

Total Loading Capacity (mL):   1350

Drying Chamber Size (Standard):     Circle: Φ300mm; Height: Φ450mm

Total Qty. of Vial Φ22: 270

Total Qty. of Vial Φ16:   555

Total Qty. of Vial Φ12 :   990

Refrigerant Type :       CFC-free

Standard Accessories:

Vacuum pump 4L/s, 14.4m³/h, material tray, material rack, PC cover(for all modes); Conical-mouth flask 500mLx8 pcs, switch valvex8 pcs

Consumption:     1.7kW(-80℃)

Electricity:        AC220V,50Hz

External Size (WxDxH)(mm):  560x710x940/1450

Shipping Size (WxDxH) :

+Main Body :       790x630x1180mm

+Drying Chamber :     410x410x640mm

+Vacuum Pump:        220x580x370mm

Gross Weight:  170kg(-80℃)"
