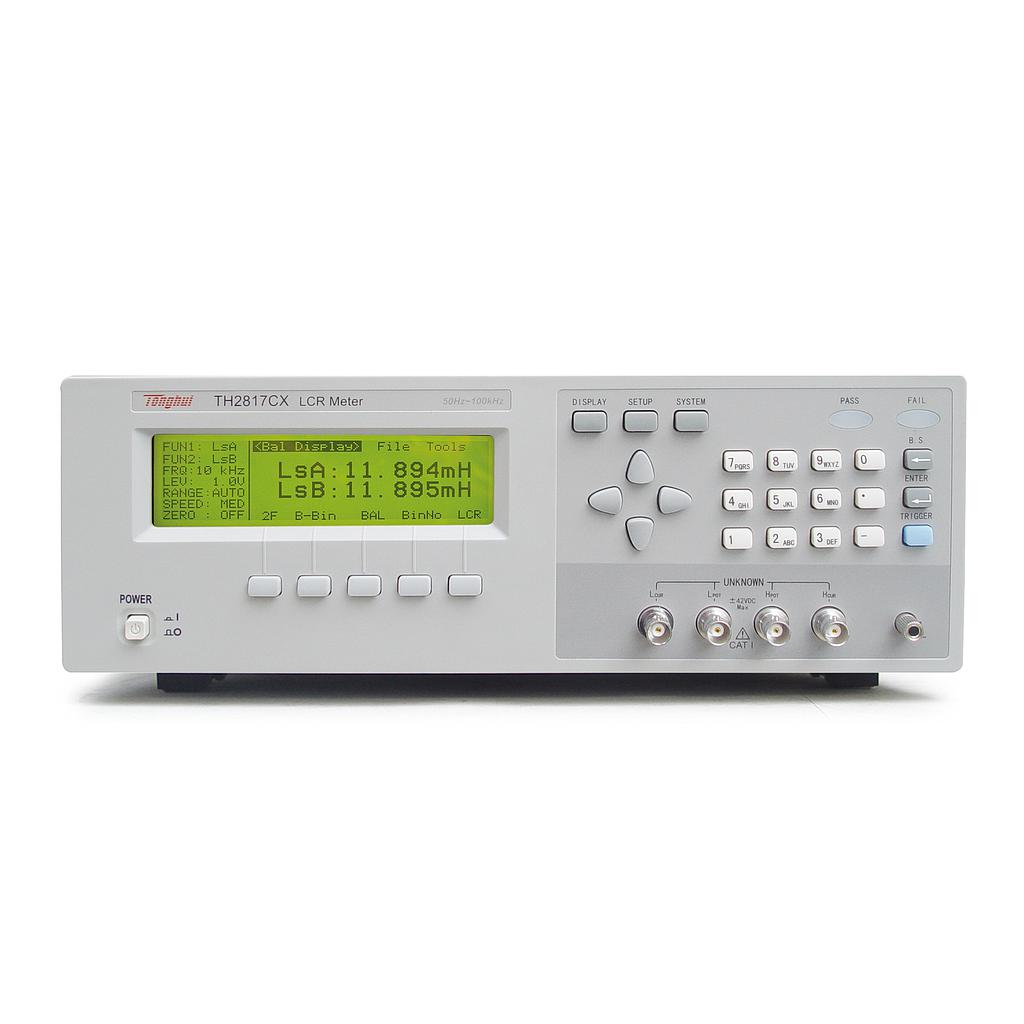

Tonghui TH2817CX LCR测试仪 (50Hz~100kHz)
制造商: Tonghui Model: TH2817CX 来源: China 保障: 12 Month - 联系
Measurement parameter:
- LCR: |Z|, R, X, C, D, L, Q, θ（deg）, θ（rad）
- Transformer: M, N, 1/N, L2, DCR2,DCR
- Balance test: L, C, R, Z, DCR2
Basic accuracy: 0.1%
Measurement speed: Fast: 20, Med: 8, Slow: 2 (times/second) (≥1kHz)
Measurement terminal: 5-terminal
Display mode: Direct, Δ, Δ%
Display: 240×64 dot-matrix LCD with 5-digit resolution
Signal frequency: 10 points: 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz
Source impedance: 30Ω, 100Ω
Test level: 0.1Vrms, 0.3Vrms, 1Vrms
Measurement display range:
- |Z|, R, X: 0.0001Ω - 99.999MΩ
- C: 0.001pF - 9999.9µ F
- L: 0.001µH - 99.999kH
- D: 0.0001 - 9.9999
- Q: 0.0001 - 9999.9
- θ: (DEG) -179.99º - 179.99 º
- θ: (RAD) -3.1415 - 3.1415
- Δ%: -99.999% - 999.99%
- N,1/N: 0.001 - 999.99
- DCR: 0.1mΩ - 199.99kΩ
- M,L2: 0.001μH - 99.99kH
Operating temperature & Humidity: 0°C - 40°C, ≤90%RH
Power supply: 198V - 242V, 47.5Hz - 52.5Hz
Power consumption: ≤ 30VA
Dimensions (W×H×D): 350mmx120mmx400mm
Weight: Approx. 4 kg
Instrument Accessories
TH26005A 4-terminal test fixture
TH26011A 4-terminal Kelvin test cable
TH26010 Gilded shorting plate
TH26038 transformer test fixture (only for TH2817C)
Options
TH26047 4-terminal test fixture
TH26048 4-terminal test fixture
TH26005B 4-terminal test fixture
TH26006 axial component test fixture (used with TH26005A)
TH26007A core test fixture
TH26008A SMD component test fixture
TH26009B SMD test tweezers
TH26029B SMD test tweezers
TH10001 GPIB interface
