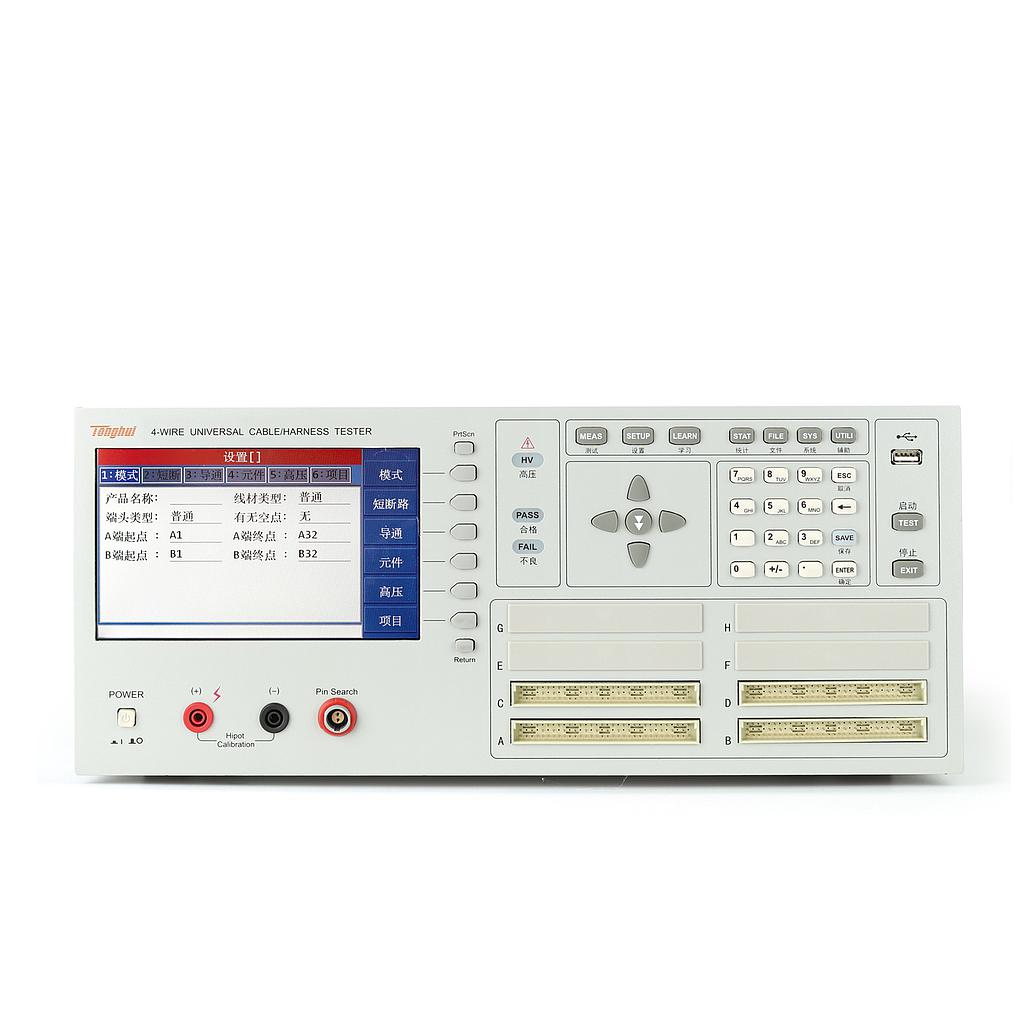

Tonghui TH8602-C 电缆硬度测试仪

Test Pin: 64

Capacitance Measurement: 1uF-1000μF

DCR: 10mΩ-1MΩ

Open and Short Circuit: 1kΩ-50kΩ

Diode Testing: 0-10V

DC withstand voltage

- Voltage: 5V-1500V

- Current: 1uA-5mA

AC withstand voltage

- Voltage: 50V-1000V

- Current: 0.01mA-5mA

Insulation Resistance

- Voltage: 5V-1500V

- Resistance: 1MΩ-1GΩ

Test Speed

- Instant breakpoint: 4ms

- Instantaneous circuit: 5μs-2ms

Details

Datasheet
