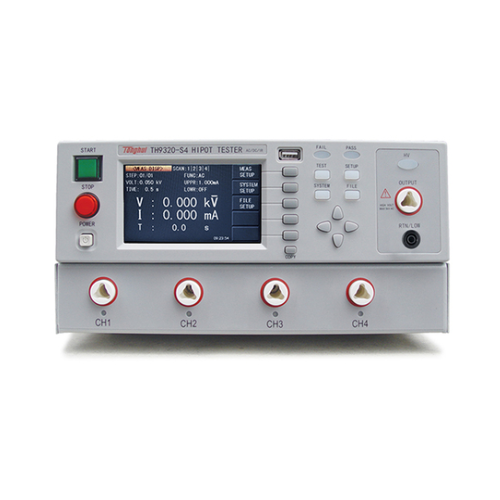

Tonghui TH9320S4 Hipot测试仪 (0.05kV~5.00kV; 0.05kV~6.00kV)

Withstanding voltage test

Output Voltage:

- AC: 0.05kV—5.00kV ±(2.0% of reading+5 digit) (50, 60Hz optional)

- DC: 0.05kV—6.00kV ±(2.0% of reading+5 digit)

- Voltage Adjustment Rate: ≤(1% - 5V)（rated power）

Current Test Range:

- AC: 0.000mA – 20.00mA ±(2% reading+2digits)

- DC: 0uA –10.00mA ±(2% reading+2digits)

- Discharge Function:Discharge after test ends（DCW）

Insulation Resistance Test

Output Voltage: 0.10kV – 1.00kV ±(2%reading+2V)

Resistance Test Range: 1MΩ– 9999MΩ

Resistance Test Accuracy:

- 500V-1000V: 1MΩ– 1000MΩ ±(5%reading+2digits) ;1000MΩ–9999MΩ ±(10%reading+2digits)

- 100V-500V: 1MΩ– 1000MΩ ±(10%reading+2digits)

Discharge Function: Discharge after test ends

Arc Detection:

Measurement Range:

- AC: 1 – 9 levels

- DC: 1 – 9 levels

General Specification

Memory: 5 groups

Voltage Rising Time: 0.1s – 999.9s

Test Time Setting（AC/DC）: 0.2s – 999.9s

Waiting Time（IR): 0.2s – 999.9s

Interface:

- Standard: HANDLER, RS232, USB DRV(PC interface), USB HOST(USB port)

- Scan Interface: 4 channels
