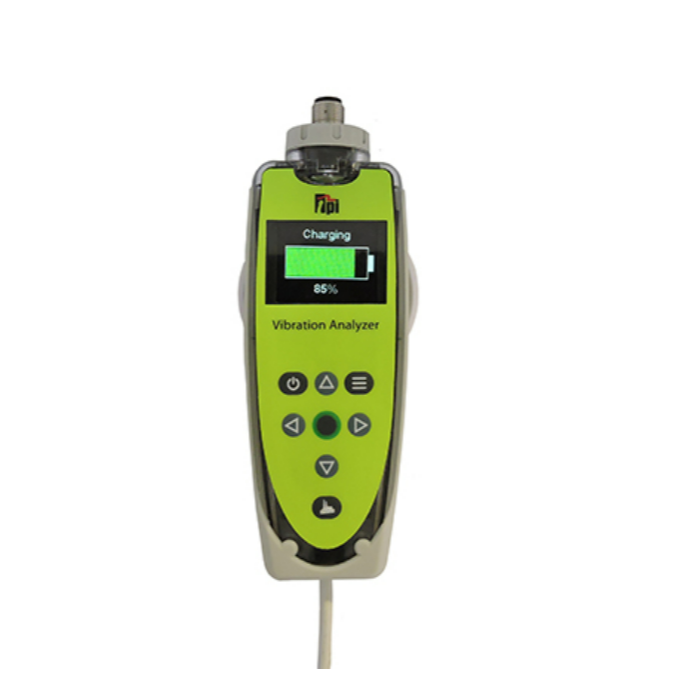

TPI 9085 震动分析仪

Size: H 7.95” W 2.36”

Weight: 9.8oz (280g)

Water: IP67 Waterproof

Operating: 32°F to 122°F (0°C to 50°C)

Storage: -4°F to 158°F (-20°C to 70°C)

Power supply: Lithium ion wireless charging

Battery life between charges: 1,500 measurements or approximately 50 hours of normal use

Frequency ranges

    ISO: 2/10Hz ~ 1kHz

    g: 10Hz ~ 10kHz

    BDU: 1kHz ~ 10kHz

Accuracy: +/-5%

Frequency resolution: 800 lines

Displayed amplitude units: g, inch/s or mm/s, BDU

Displayed frequency units: Hz, CPM or RPM

Input range: +/- 50 g

Dynamic range: 96 dB

Displayed temperature range: -60°F to 300°F (-50°C to 150°C)

Accuracy: (+/- 2°C); (+/- 4°F)

Accelerometer connection: 5 pin MIL connector cable with magnet and temperature sensor

Communication: Bluetooth or USB docking station and cable to PC; data integration using software C-Trend II
