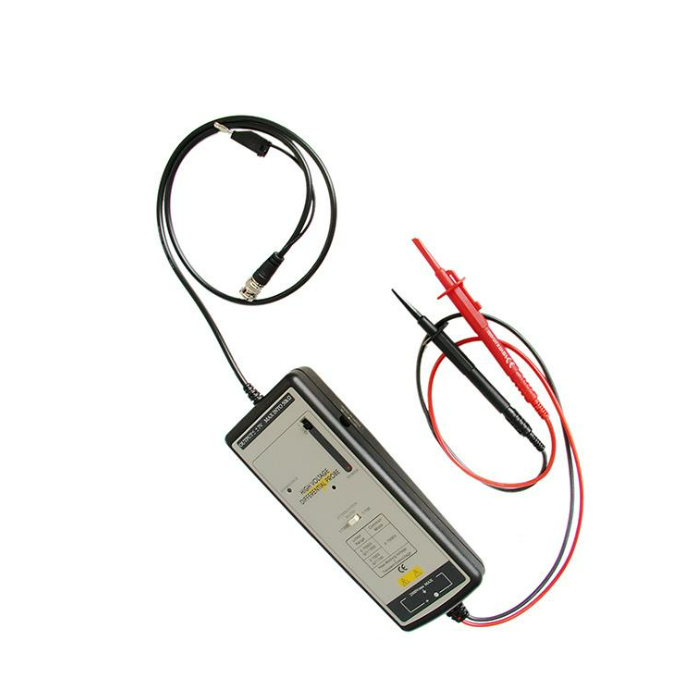

TPI ADF25C 差动示波器探头 (70 MHz)
制造商: TPI Model: ADF25C - 报价要求
- 报价要求
- 联系
Bandwidth: DC -70 MHz (-3dB)
Accuracy: ± 2%
Risetime: 14nS
CMRR @ 50Hz: -80dB
CMRR @ 20kHz: -60dB
CMRR @ 200kHz: -50dB
Input Impedance: 10M/10pf each side to ground 20M/5pF between inputs
Input Voltage: ±700V DC Inc.Pk AC @ 100:1 or 400V RMS
Maximum differential: ± 7,000VDC Inc. Pk AC 1,000:1 or 5,000V RMS
Output voltage: ± 7V minimum 2KΩ load
Offset: <± 5mV -10° C to + 40° C
Common mode: ± 7,000V DC Inc. Pk AC or 2,500V RMS
Noise: 0.9mV RMS
Output Source Impedance: 50Ω
Input Leads: 60 cm double insulated Rubber
