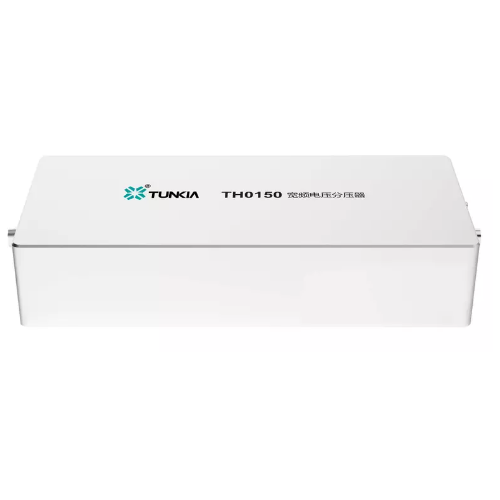

Tunkia TH0150 宽频分压器 (100 V, Active)

- Voltage measurement:

Nominal input voltage ( kV ): 100

Maximum input voltage ( kV ): 110

Nominal output voltage ( V ): 1

Proportional uncertainty ( k=2, ppm ): 50

Temperature coefficient ( ppm/K ): 2

- AC/DC Difference and Phase Displacement:

AC/DC difference (ppm):

53 Hz: 10

1 kHz: 20

10 kHz: 30

100 kHz: 100

Phase shift (μrad):

53 Hz: 5

1 kHz: 15

10 kHz: 120

100 kHz: 1000

- General Specifications:

Power supply: TH0150-A type: passive; TH0150-B type: lithium battery

Warm up time: 30 minutes

Temperature performance:

operating temperature: 5 °C~45 °C;

calibration temperature: 18 °C~28 °C;

storage temperature: -10 °C~55 °C

Note: When stored in a harsh temperature environment, the resistance value may change temporarily and be restored to the original resistance value within the following 30 days.

Humidity performance:

operating humidity: < 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C

storage humidity: ( 20%~80% ) R•H, non-condensing

Weight: 5 kg

Connection mode:

Input: Type-N female plug, Output: Type-N male plug

Overall dimensions: 196x91x467 mm
