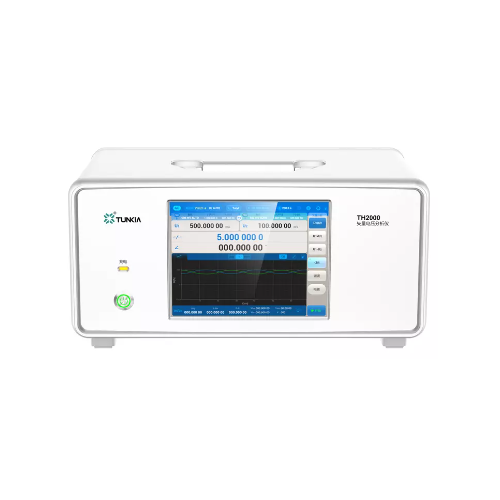

Tunkia TH2000 矢量电压分析仪 (50 ppm, 1 MHz)

Dual channel voltage measurement range: 0.5 mV ~ 6 V.

Frequency measurement range: DC, AC 10 Hz ~ 20 kHz.

The best uncertainty of voltage and power are 50ppm and 100ppm.

The best uncertainty of phase displacement is 0.0005°.

Supporting dual channel voltage multiplication and division operation.

Can measure and analyze the 2nd~256th harmonics.

Can display harmonic content, total harmonic distortion and spectrum diagram.

Statistical analysis of the measured electrical parameters.

Supporting both internal and external synchronization.

Supporting battery power supply, to improve CMRR.

USB, RS232 and LAN communication interfaces.

Equipped with LCD touch screen.

Please see the Datasheet for detailed specifications
