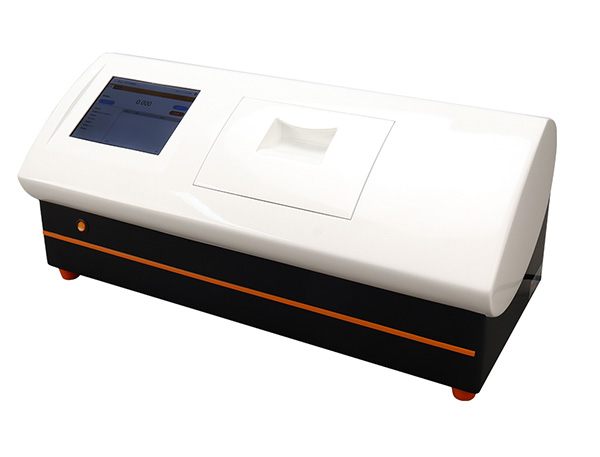

XHinstruments XHD-PO-850 Automatic Polarimeter (+/-89.99°Arc; +/-259°Z)

Measuring range: +/-89.99°Arc; +/-259°Z

Measuring Model: Optical Rotation; Specific Rotation; Concentration; Sugar Degree

Min.reading: 0.001°(optical rotation)

Accuracy: +/-0.01º(-45º. optical rotation ≤+45º;  +/-0.02º ( optical rotation<﹣45º or optical rotation>﹢45º)

Repeatability (standard deviation): 0.002°(optical rotation)

Min. Transmittance: 0.01

Light Source: LED

Wavelength: 589.3nm LED

Temperature Control: Peltier

Temperature Control Range: 10℃-50℃

Temperature Control Accuracy: 0.3℃

Communication Port: USB×3,RS232, Wi-Fi

Data Storable: 8GB

21CFR Part 11: No

Display: 8 inch

Sample Cell: Up to 200mm

Graphic: 4hours

Power: 220V AC (+/-10%) 50Hz

Calibration System: Option


Product Description:

PO Series Polarimeter with automatic photoelectric inspection technology, boasts accurate and reliable measurement, convenient operation. By detecting the optical rotation, thedensity, content and purity of substances can be analyzed and determined. It’s widely used in pharmaceutical,petroleum, food, chemicals, flavors, spices, sugar marking and other industries , and universities and research institutes. New upgraded models: 810 Pro/ 850 Pro adopt brilliant Android system and communication ports, let new models meet FDA 21 CFR part 11.

Product Features:

- Peltier Temperature Control

The Peltier system automatically controls the sample temperature in the max range from 10 °C to 50 °C.

- User Calibration System

Additional Standard polarization tubes with software for calibration by user.

- Large Color Touch Screen

Large color touch screen display and innovative software interface give extremely convenient device operation and data acquisition. P810 adopt a 5.6 inch TFT display, P810 Pro/P850/ P850 Pro adopt 8 inch TFT display.

- LED Light Source

High brightness LED lights with service life exceeding 100000 hours. To void the light source exchanging.

New 810 Pro/ 850 Pro New Characteristics:

Adopt an 8-inch TFT touch screen, with the brilliant Android system, let the operating easier.

Meet FDA 21 CFR part11.

User ID management function. Users ID are available for adding, deleting and jurisdiction setting.

Timing measuring and atlas display function, displaying the samples optical rotation changing dynamic process.

8GB room for data storage.

Classify and synchronous result searching function is convenience for user’s result searching.

3 USD port for U-Disk, keyboard&mouse connecting. And WiFi for connecting the printer. Let operating much easier.
